Cross Reference for Murata CT04120 Li-Ion Battery

Are you looking for a reliable alternative to the discontinued Murata Small Lithium-ion secondary battery, CT04120? Nichicon’s LTO Batteries, SLB series, offer comparable specifications to ensure seamless integration into your existing applications.

Discontinued Murata Small Lithium-ion secondary battery, CT04120

Murata Small Lithium-ion secondary battery, CT04120, featured the following specs:

• Nominal Voltage: 2.3V
• Nominal Capacity: 3mAh
• Size: φ4mm × 12mm
• Operating Temperature Range: -20°C to 70°C

Although not identical, Nichicon LTO Batteries feature functionally comparable specifications.

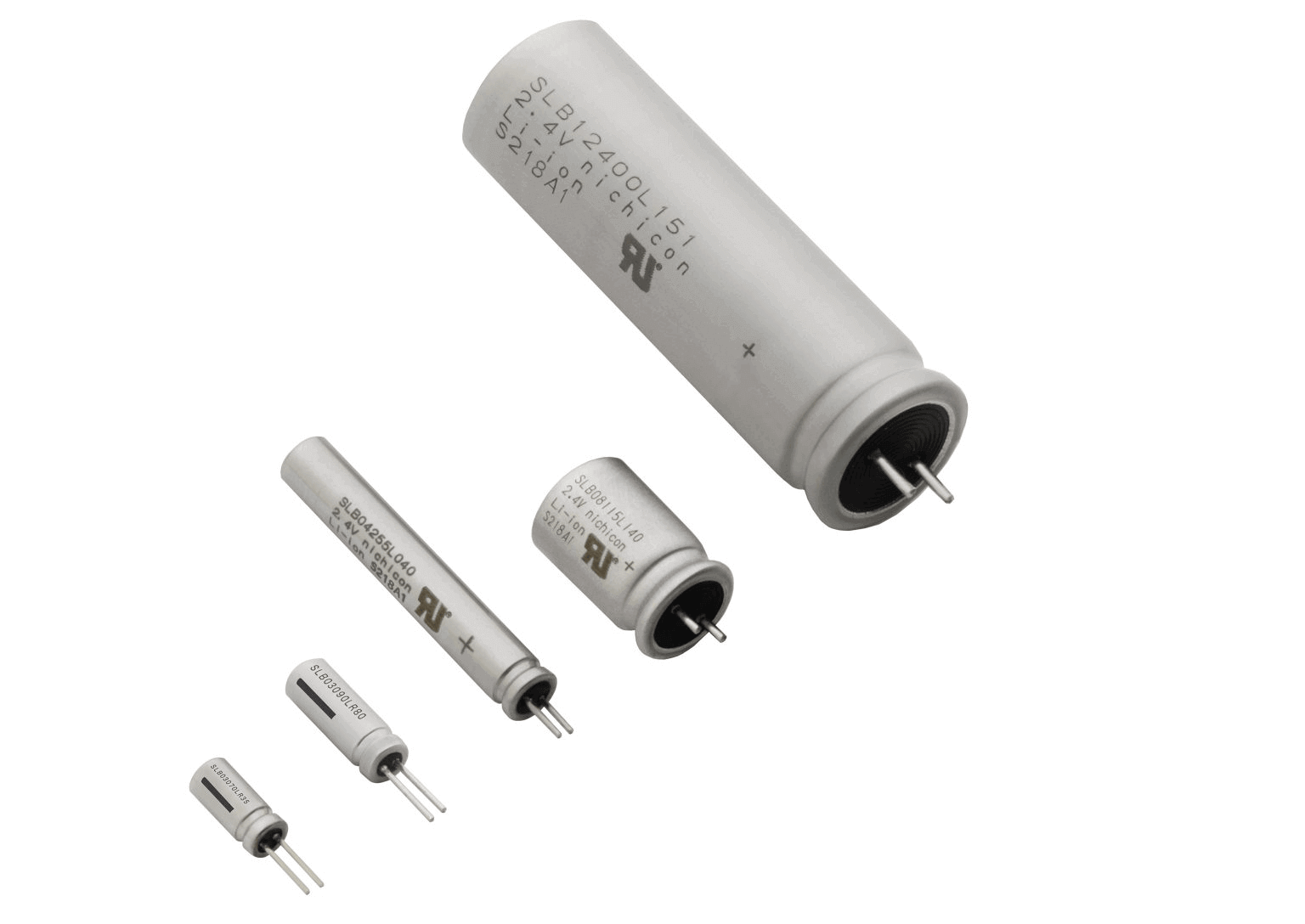

Alternative to CT04120: Nichicon LTO Batteries

The discontinuation of Murata’s CT04120 has left many manufacturers searching for a reliable alternative. Nichicon’s LTO Batteries, SLB Series, feature parametrically similar specifications to the Murata CT04120, providing a dependable power source for your devices. Nichicon recommends evaluating all specification differences before transitioning to the Nichicon SLB series.

Advantages of Nichicon Batteries

• Rapid charging: Our board-mount batteries can discharge and recharge much faster than standard lithium-ion batteries. A traditional lithium-ion battery may take about an hour to charge while our LTO batteries can charge in about 3 minutes at the same current value.  Our LTO batteries are ideal for applications that need a small, high-powered battery.
• Micro size: Our small, cylindrical LTO board-mount batteries are our smallest ever at 3 millimeters and they have a small footprint so they can be used for space constrained applications.
• Long life: Our high-cycle life battery can last for more than 25,000 charge/discharge cycles. They are resistant to over-charging and over-discharging. The use of lithium titanate in LTO batteries also results in a longer life as the lithium ions are less likely to be consumed by the electrolyte.
• Maintenance free: Our board-mount batteries require no maintenance.
• Sustainable: These batteries are designed to be environmentally responsible and adhere to international standards such as RoHS regulations, meeting stringent standards for operation.
• High power density: The high-power density input/output of our LTO batteries is higher than typical lithium-ion batteries and approaches the capabilities of electric double layer capacitors (EDLCs).
• High safety: Our LTO batteries can operate in harsh conditions and temperatures with a very low risk of ignition or explosion.
• Low temperature: These low temperature batteries can be charged and discharged at temperatures as low as -30°C as the lithium titanate does not experience thermal runaway at these temperatures that can lead to oxygen combustion reactions like in standard lithium-ion batteries.
• High discharge: Our high discharge batteries can fully discharge in about 3 minutes compared to about an hour for standard lithium-ion batteries.
• UL 1642 & IEC 62133-2 certified
• ISO 9001 & ISO 14001 certified

Application Areas

Our LTO Batteries is ideal for use in numerous applications, including but not limited to:

• IIoT / IoT applications
• Energy harvesting applications using intermittent ambient energy sources
• Wireless sensors
• Asset tracking applications
• Space constrained applications
