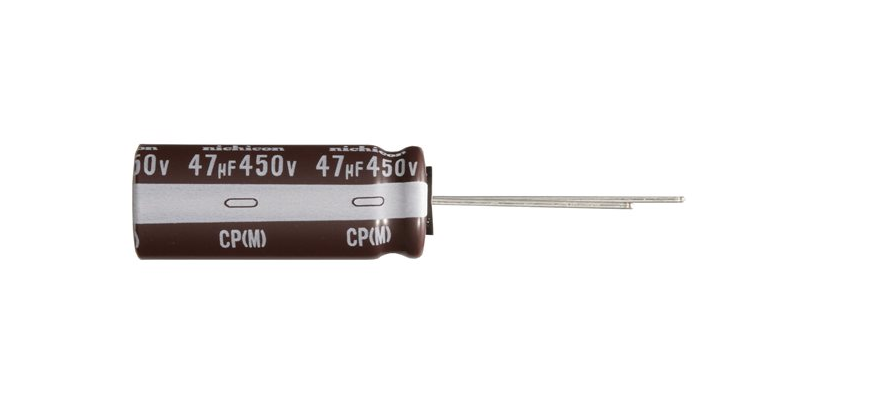

UCP2W470MHD

Download Datasheet RoHS Compliant

Spice Model 3D CAD Drawing Lifetime Calculator

Specifications Package Options Have Questions?

Specifications

Type

Aluminium

Mounting Type

Radial Lead

Capacitance

47 µF

Capacitance Tolerance

-20%~20%

tanδ(DF)

0.24

Voltage

450 V

Low Frequency Ripple Current

430 mA

ESR @ 20°C/100kHz

0 mΩ

Leakage Current

946 µA

Life/Endurance

10000 h

Temperature Range

-40℃~105℃

Size

φ12.5x31.5L

Lead Spacing

5 mm

Lead Spacing Tolerance

0.5 mm

Packaging Type

Bulk(No Terminal Forming) / Bag Packing

Status

Mass Production

Package Options

UCP2W470MHD1SZ

Bending & Cut / Bag Packing

UCP2W470MHD1AA

Bending(Snap-in) / Bag Packing

UCP2W470MHD1CA

Cut / Bag Packing

UCP2W470MHD1CC

Cut / Bag Packing

UCP2W470MHD1CM

Cut / Bag Packing

UCP2W470MHD1CP

Cut / Bag Packing

UCP2W470MHD1CT

Cut / Bag Packing

UCP2W470MHD1CV

Cut / Bag Packing
