UCYW66R8MPD

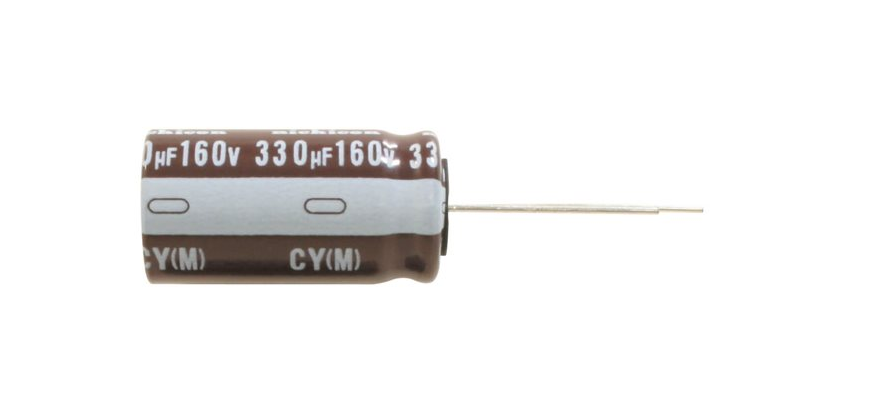

Miniature Aluminum Electrolytic Capacitor for High Reliability - UCY

Download Datasheet RoHS Compliant

AEC-Q200 Compliant

Spice Model 3D CAD Drawing Lifetime Calculator

Specifications Package Options Have Questions?

Specifications

Capacitance

6.8 µF

Capacitance Tolerance

-20%~20%

ESR @ 20°C/100kHz

0 mΩ

High Frequency Ripple Current

210 mA

Lead Spacing

5 mm

Lead Spacing Tolerance

0.5 mm

Leakage Current

214.24 µA

Life/Endurance

10000 h

Low Frequency Ripple Current

105 mA

Mounting Type

Radial Lead

Packaging Type

Bulk(No Terminal Forming) / Bag Packing

Size

φ10x16L

Status

Mass Production

tanδ(DF)

0.24

Temperature Range

-40℃~105℃

Type

Aluminium

Voltage

420 V

Package Options

UCYW66R8MPD1AA

Bending(Snap-in) / Bag Packing

UCYW66R8MPD1TD

Bulk(No Terminal Forming) / Taping(AMMO-Pack)

UCYW66R8MPD1CA

Cut / Bag Packing

UCYW66R8MPD1CC

Cut / Bag Packing

UCYW66R8MPD1CM

Cut / Bag Packing

UCYW66R8MPD1CP

Cut / Bag Packing

UCYW66R8MPD1CT

Cut / Bag Packing

UCYW66R8MPD1CV

Cut / Bag Packing
