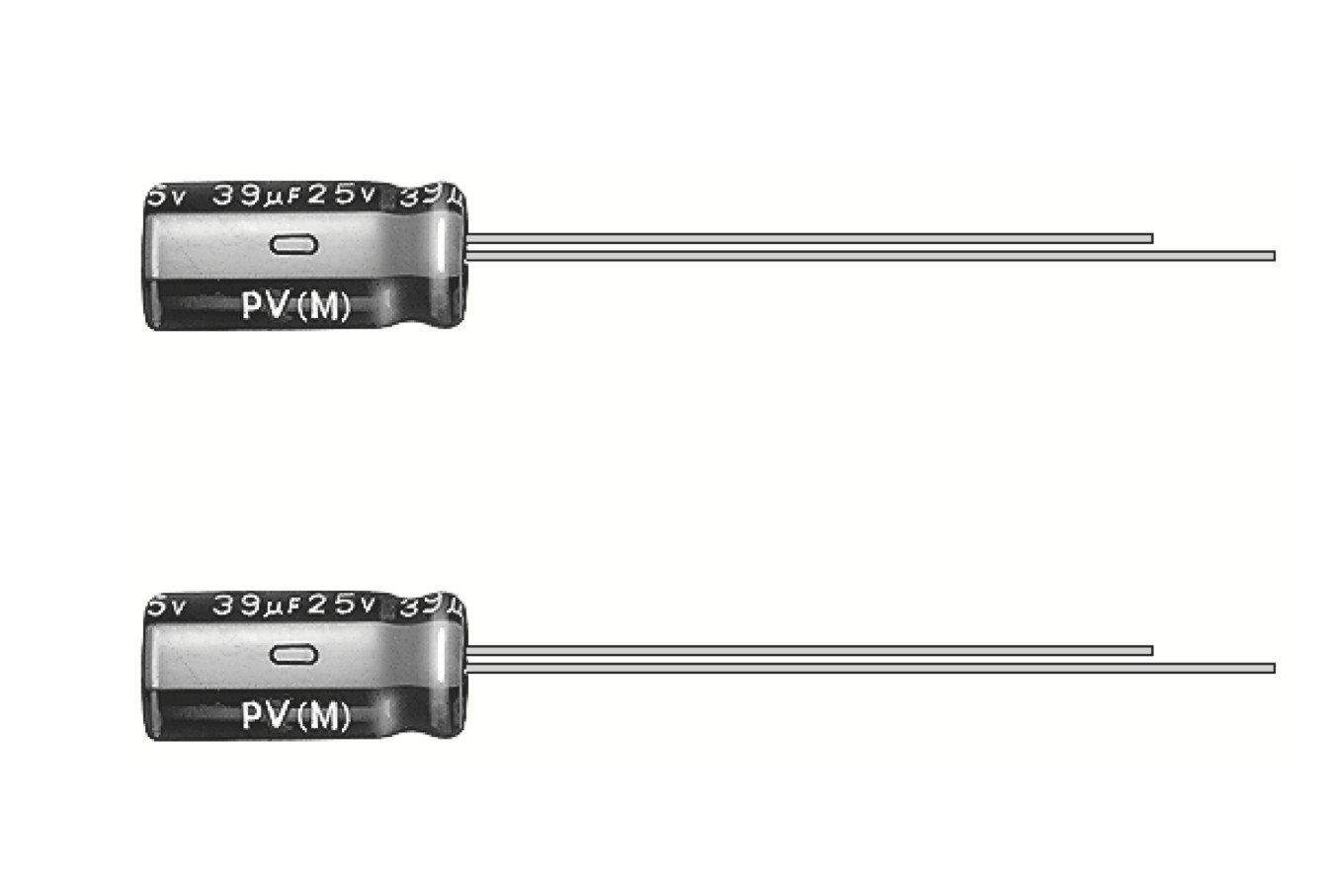

UPV0J101MFD

Download Datasheet

Spice Model 3D CAD Drawing Lifetime Calculator

Specifications Package Options Have Questions?

Specifications

Type

Aluminium

Mounting Type

Radial Lead

Capacitance

100 µF

Capacitance Tolerance

-20%~20% %

tanδ(DF)

0.22 tanδ

DF Measurement Condition

20℃, 120Hz

Voltage

6.3 V

Low Frequency Ripple Current

84 mA

High Frequency Ripple Current

150 mA

Leakage Current

18.9 µA

Life/Endurance

5000 Lo

Temperature Range

-55℃~105℃ °C

Size

φ5x11L mm

Lead Spacing

Lead Spacing Tolerance

0.5

Packaging Type

Bulk(No Terminal Forming) / Bag Packing

Status

End Of Life

Package Options

UPV0J101MFD1FA

Bending & Cut / Bag Packing

UPV0J101MFD1FV

Bending & Cut / Bag Packing

UPV0J101MFD1TA

Bending / Taping(AMMO-Pack)

UPV0J101MFD1TC

Bulk(No Terminal Forming) / Taping(AMMO-Pack)

UPV0J101MFD1TD

Bulk(No Terminal Forming) / Taping(AMMO-Pack)

UPV0J121MFD1AA

Bending(Snap-in) / Bag Packing

UPV0J121MFD1CA

Cut / Bag Packing

UPV0J121MFD1CC

Cut / Bag Packing

UPV0J121MFD1CM

Cut / Bag Packing

UPV0J121MFD1CP

Cut / Bag Packing

UPV0J121MFD1CT

Cut / Bag Packing

UPV0J121MFD1CV

Cut / Bag Packing
