UWJ

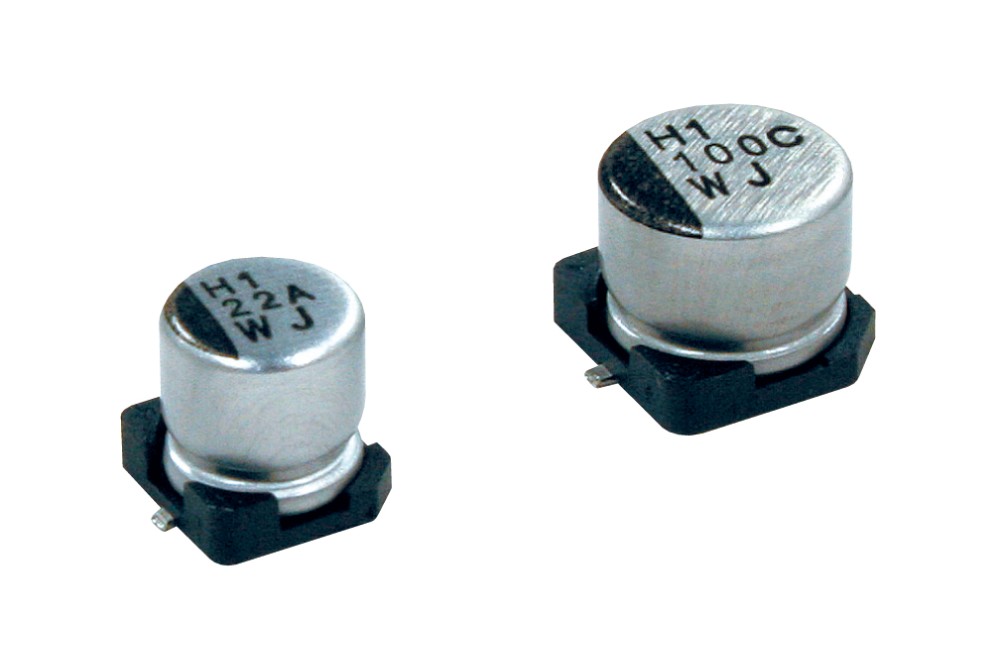

The UWJ series offers low-profile (5.5 mm L) chip-type aluminum electrolytic capacitors that can withstand high-temperature reflow soldering (up to 260 °C for 5 seconds or 230 °C for 60 seconds). Offering a high load life of 2,000 hours at 85 °C and operating temperature range of -40 °C to +85 °C, the UWJ series is available in voltage ratings from 6.3 V to 50 V and capacitances from 1 µF to 150 µF. The series is AEC Q200 and RoHS compliant and can be surface mounted on high-density PCBs in automated assembly using carrier tape.
