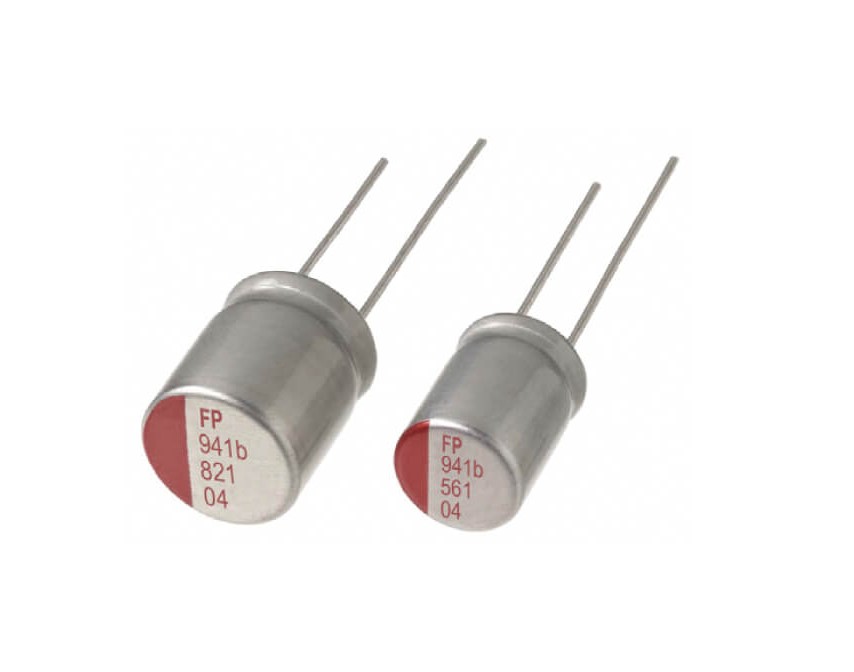

RR7

Ideally suited to lighting applications and the secondary side of SMPS, RR7 series radial-lead-type FPCAPs offer a very low ESR of 7 mΩ, with high ripple current capability. Their rated voltages range from 2.5 V to 16 V with capacitances from 68 µF to 1,500 µF. They operate within a temperature range of -55 °C to +105 °C with a load life of 2,000 to 5,000 hours at 105 °C. This RoHS-compliant series supports lead-free flow soldering.
