Lithium Titanate Rechargeable Battery Products

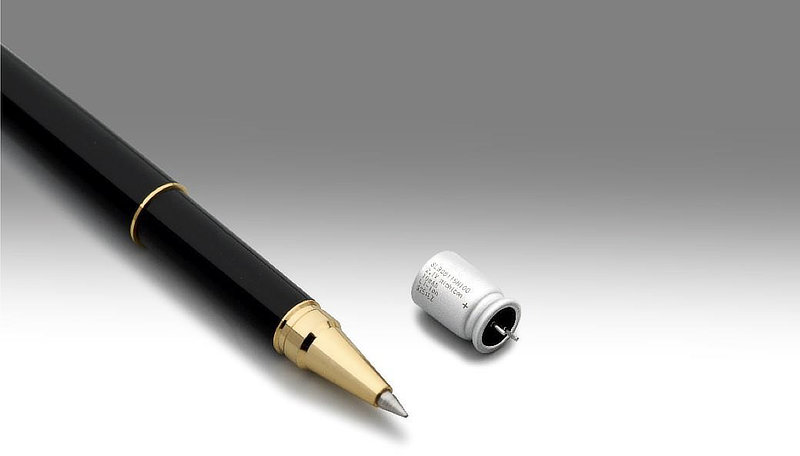

The SLB Series of small lithium-titanate-oxide rechargeable batteries offers the features of an LTO battery in a small package suitable for space-constrained applications, making it ideal for use in the Internet of Things (IoT) market.

Using Toshiba Corporation’s SCiB™ rechargeable battery technology, the SLB Series has an increased temperature range from -30°C to 80°C and a much longer lifespan than other rechargeable batteries, lasting over 25,000 charge/discharge cycles. The active material for the negative electrode is lithium titanate oxide (LTO), which provides greater thermal stability than the carbon-based materials traditionally used in lithium-ion rechargeable batteries. This helps reduce the risk of fire or explosion, even in the case of a forced internal short circuit. These batteries have characteristics of both re‐chargeable Li‐ion batteries and EDLCs, making them viable alternatives in applications using either EDLCs or rechargeable batteries.


Precautions When Transporting Small Lithium Titanate Rechargeable Batteries

Small Lithium-Titanate Rechargeable Batteries are classified as Class 9 Dangerous Goods by UN Recommendations and are given UN number UN3480.

When transporting lithium-titanate batteries, in addition to the requirements of the United Nations recommendations, all requirements in the IATA Dangerous Goods Regulations (IATA-DGR) and the International Maritime Dangerous Goods Regulations (IMDG-Code) must be met.

  • According to the classification of transportation regulations, Small Lithium-Titanate Rechargeable Batteries are classified as lithium-ion batteries. Small Lithium-Titanate Rechargeable Batteries and their shipping packaging meet the UN Manual of Test and Criteria requirements, Part III, Subsection 38.3.
  • The packaging specifications of Small Lithium-Titanate Rechargeable Batteries meet the UN Recommendations’ requirements, and the regulations mentioned above. If you want to use the packaging as it was shipped from NICHICON and need transportation certificates, please contact the sales office where the parts were purchased.
  • Please note that the packaging tests and certificates will need to be carried out by yourself if you repackage using your packing material.
  • Each shipping company may have its own regulation; please check with the shipping company you are using for details before shipping.

For Air Freight

The packaging standard for air transportation of Small Li-Titanate Rechargeable Batteries (UN3480) is PI965 of IATA Dangerous Goods Regulations (IATA-DGR). Please refer to the latest version of the IATA Dangerous Goods Regulations (IATA-DGR) for details.

For Ocean Freight

When transporting Small Lithium-Titanate Rechargeable Batteries (UN3480) by the ocean, if all of the transportation requirements of the International Maritime Dangerous Goods Regulation (IMDG-Code) Special Provision 188 are met, it is possible to transport the batteries as dangerous goods excluded items. For details, please refer to the latest version of the IATA Dangerous Goods Regulations (IATA-DGR).

Product Safety Data Sheets

To ensure the safe use of the product, we provide the product safety data sheet (PSDS) as reference information. When using the product, you must take appropriate measures based on the PSDS at your own risk. Please note that the PSDS does not guarantee the safety of the product.

No.Product NamePart NumberData SheetUpdate Date
1Small Lithium Titanate Rechargeable BatteriesSLB03070LR35pdf-icon.pngSep.4, 2024
2SLB03090LR80pdf-icon.pngSep.4, 2024
3SLB04255L040pdf-icon.pngSep.4, 2024
4SLB08115L140pdf-icon.pngSep.4, 2024
5SLB12400L151pdf-icon.pngSep.4, 2024

Test results of UN Manual of Test and Criteria, Part III, Subsection 38.3

The test results of the UN Manual of Test and Criteria, Part III, Subsection 38.3 can be downloaded from the following.

No.Product NamePart NumberData Sheet Update Date
1Small Lithium Titanate Rechargeable
Batteries		SLB03070LR35pdf-icon.pngOct. 2024
2SLB03090LR80pdf-icon.pngOct. 2024
3SLB04255L040pdf-icon.pngOct. 2024
4SLB08115L140pdf-icon.pngOct. 2024
5SLB12400L151pdf-icon.pngOct. 2024

Main Rules Regarding Transportation

  • UN Recommendations (for air, land, and ocean)
    • UN Recommendations on the Transport of Dangerous Goods: Model Regulations
  • Rules for Air Freight
    • International Civil Aviation Organization (ICAO): Technical Instructions for Safety Transport of Dangerous Goods by Air
    • International Air Transport Association (IATA): Dangerous Goods Regulations
  • Rules for Ocean Freight
    • International Maritime Organization (IMO): International Maritime Dangerous Goods (IMDG) Code
