SCBE2500A000400X

The Nichicon SCBE2500A00040X Self-Charging Battery Board offers a plug-and-play light-powered solution that simplifies integration and delivers continuous energy for low-power electronics

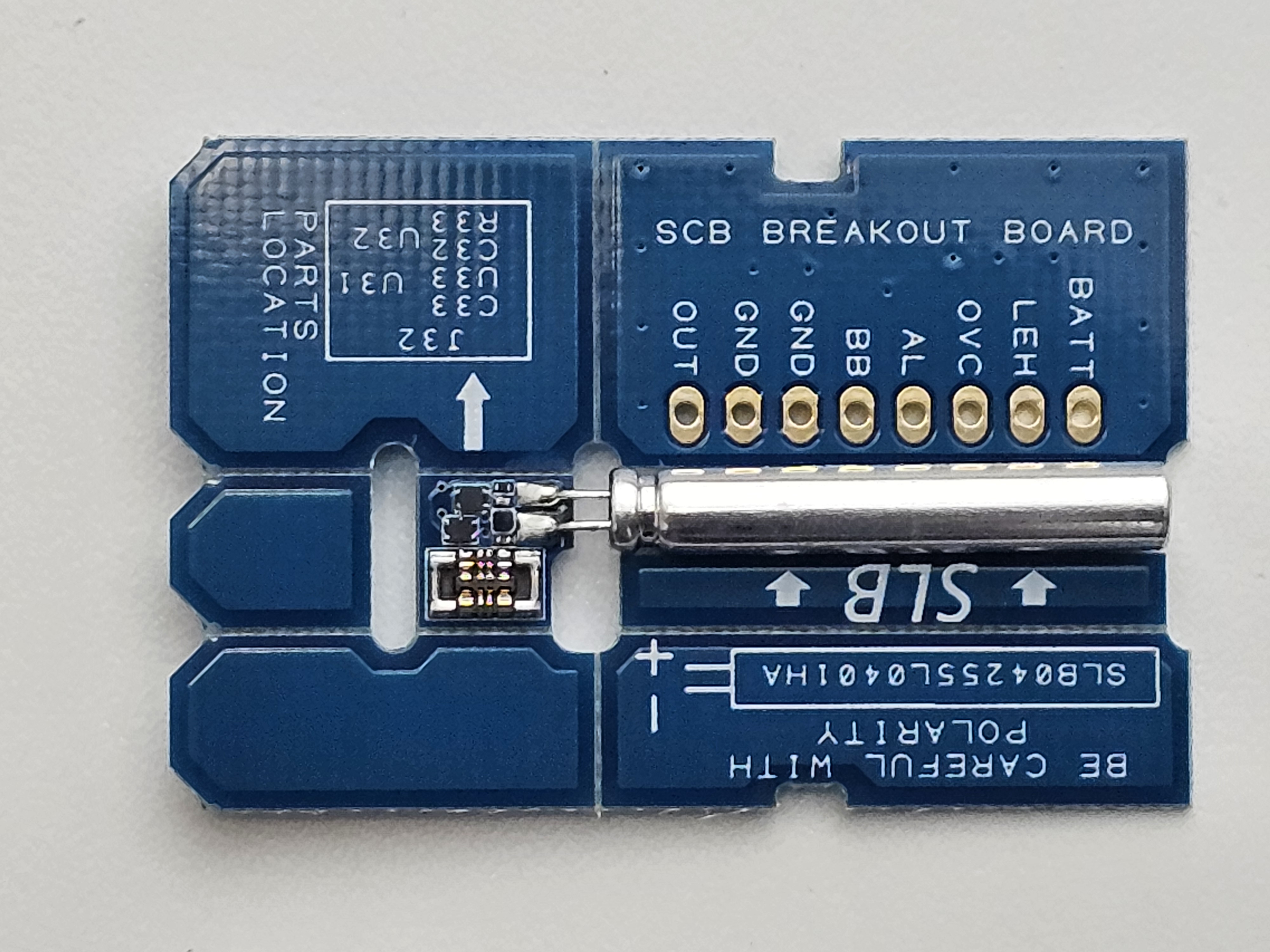

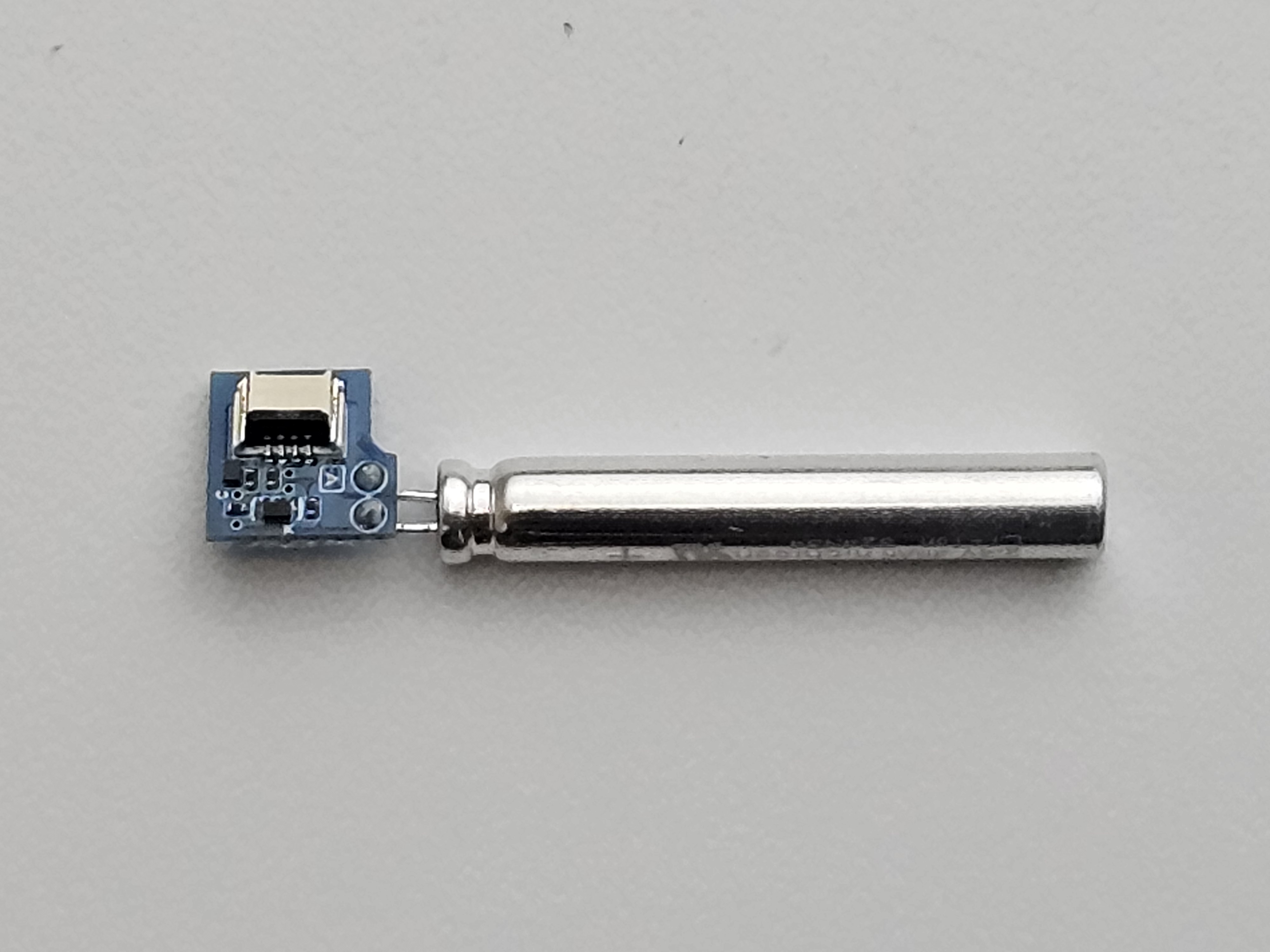

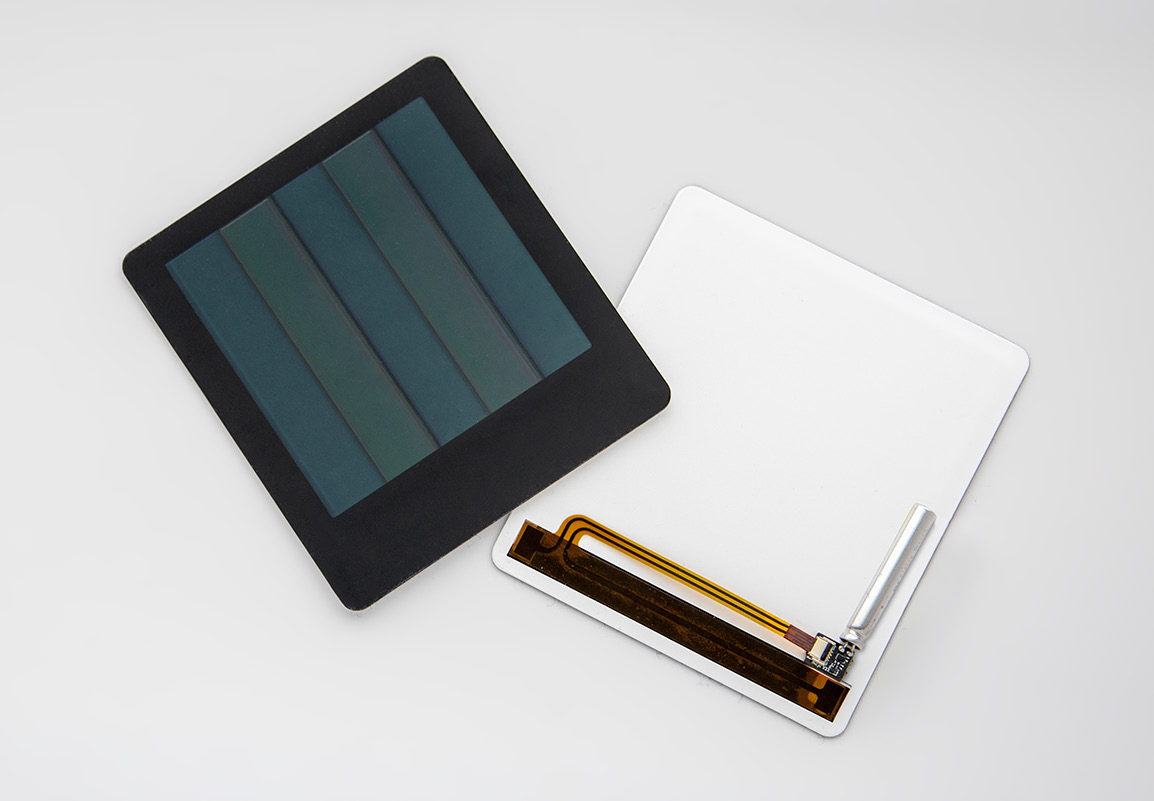

The Nichicon SCBE2500A00040X is a compact Self-Charging Battery (SCB) evaluation board designed to demonstrate the capabilities of Nichicon’s light-powered energy solution. Built for easy integration, this board features a solder-free connector system that enables fast setup and direct connection to PCBs. The SCB efficiently converts ambient light into energy, continuously recharging itself to provide a long-lasting and maintenance-free power source for IoT devices, sensors, and other low-power applications.


• Nominal Voltage: 2.4 V with 4 mAh nominal capacity

• Possible Harvested Energy Over Lifetime: 15,000 mAh (Office desk mounting, 500lux 24 hours per day during 10 years)

• Temperature Range: -30 °C to +60 °C

• Continuous Discharge Current: 80 mA (at 20 °C)

• Max short-time discharge pulse current: 400mA (100°C)
