Conductive Polymer Aluminum Solid Electrolytic Capacitors

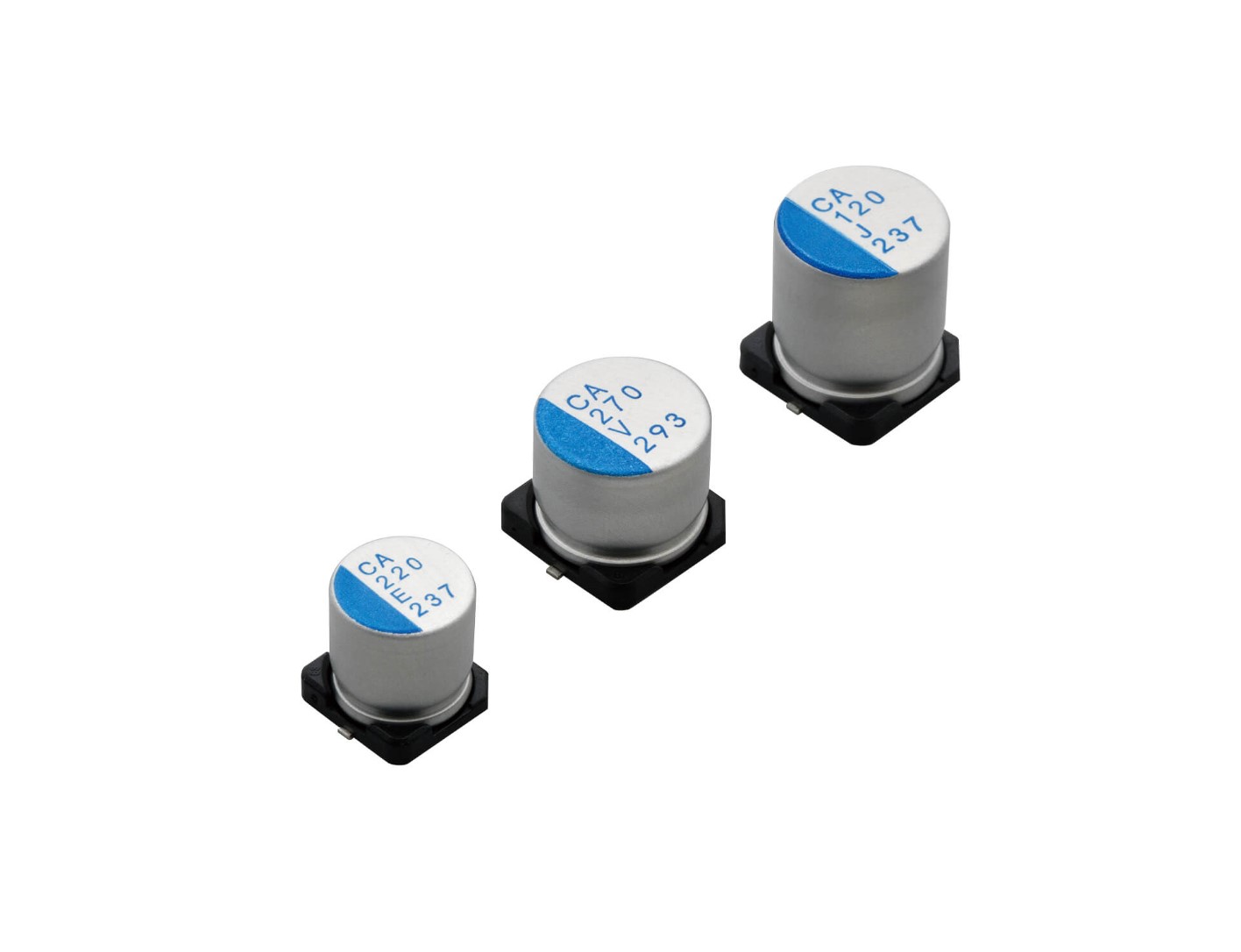

The PCA series features highly reliable capacitors with high ripple current, low ESR and a long life of 4,000 hours at 125°C.

The PCF series offers low ESR, high ripple current and features a load life of 2,000 hours at 105°C, rated voltages from 2.5 V to 25 V, and capacitances from 6.8 µF to 1,500 µF

The PCG series chip capacitors feature higher capacitance than the PCF series, while maintaining low ESR and high ripple current ratings.

The highly reliable PCH series offers low ESR, high ripple current, and a wide operating temperature range of -55°C to 135°C, with a long life of 4,000 hours at 135 °C.

The PCJ series offers low ESR, high capacitance, and high ripple current with operating temperature range from -55°C to 10 °C and a load life of 2,000 hours at 105°C.

The PCK series features ultra-low ESR, high capacitance, and high ripple current operating on temperature from -55°C to 105°C and a load life of 2,000 hours at 105°C.

The PCL series features high capacitance and an impressive lifespan of 20,000 hours at 105°C.

The high-reliability PCM series offers low ESR and high ripple current combined with high capacitance, an operating temperature range of -55°C to 125°C, and a lifespan of 8,000 hours.

The highly reliable PCR series features low ESR, high ripple current, and a long operational life available in high capacitance and high voltage options.

The PCS series offers a long life assurance with a rated load life of 5,000 hours at 105°C.

The long-life PCV series offers high permissible ripple current and low ESR with high-voltage options (up to 125 V).

Ideal for use in the automotive and telecommunications sectors, the PCW series offers guaranteed ripple current capacity at high temperatures.

The PCX series delivers high permissible ripple current, low ESR, and long life, with improved high-temperature resistance compared to the PCV series.

The PCY series is designed for next-generation communication systems requiring high heat and moisture resistance and long operational life.

The high-reliability PCZ series offers low ESR and high ripple current with an improvement in high temperature resistance over the PCH series.

High-performance SMD polymer capacitors with a 5,000-hour life at 125°C featuring high ripple current and low ESR.

The RDE series is a surface-mount conductive polymer aluminum solid electrolytic capacitor (FPCAP) featuring low ESR and high ripple current.

The RDS series features surface mountable, chip-type FPCAPs designed for high-reliability applications, such as telecommunications and industrial equipment.

RE5 series capacitors are low-profile (8 mm) radial-lead-type FPCAPs with ultra-low ESR and high ripple current specification, ideal for lighting and secondary power supplies.

The RF8 series of FPCAPs features low ESR/ESL and high-ripple-current in a compact package (φ5 mm, 8 mm height).

RFA series chip-type FPCAPs are designed for high-frequency applications, offering high capacitance in φ4 mm and φ5 mm sizes.

RFS series surface-mountable FPCAPs offer low ESR and high ripple current for high-frequency applications.

RHA series capacitors are surface-mountable FPCAPs designed for high-frequency applications, with low ESR (lower than the RHS series) and high ripple current capability.

RHS series capacitors are surface-mountable FPCAPs designed for high-frequency applications, with low ESR and high ripple current capability.

The high-temperature RHT series offers an operating temperature range of -55 °C to 125 ° and is suitable for lighting and secondary power supply applications.

The RKS series of surface-mountable FPCAPs offer high capacitance and ripple current capability for high-frequency applications.

The RL8 series of low-profile (φ8 mm, 8 mm height) radial-lead-type FPCAPs offer ultra-low ESR and high ripple current specifications.

The RNE series of radial-lead-type FPCAPs features high capacitance (100 µF to 1,500 µF) with low ESR, high ripple current, and a load life of 2,000/5,000 hours at 105°C.

RNL series capacitors are large-sized, radial-lead-type FPCAPs that offer high capacitance, low ESR, and high ripple current capability.

The RNS series of standard lead-type FPCAPs offers low ESR and high ripple current capability.

RNU series FPCAPs are radial-lead-type aluminum solid electrolytic capacitors offering low ESR and high ripple current and higher capacitance than RNS series FPCAPs.

RPA series capacitors are standard chip-type FPCAPs in φ6.3 mm, φ8 mm, and φ10 mm sizes, offering low ESR and high ripple current suitable for high-frequency applications.

RPS series capacitors are standard chip-type FPCAPs in φ6.3 mm, φ8 mm, and φ10 mm sizes feature low ESR, high ripple current capability, and a load life of 2,000 to 5,000 hours at 105°C.

The RR5 series of radial-lead-type FPCAPs features an ultra-low ESR of 5 mΩ with high ripple current, ideal for lighting and secondary power supply applications.

Ideally suited to lighting applications and the secondary side of SMPS, RR7 series radial-lead-type FPCAPs offer a very low ESR of 7 mΩ, with high ripple current capability.

RS6 series capacitors are miniature, radial lead-type FPCAPs offering high capacitance, low ESR, and high ripple current.

The RS8 series of low-profile (φ6.3 mm, 8 mm height), radial-lead-type FPCAPs feature low ESR/ESL and high ripple current, suitable for lighting and secondary-side power supply applications.

The surface-mountable RSA series FPCAPs offers low ESR and high ripple current for high-frequency applications.

SMD-type RSB series FPCAPs with low ESR and high ripple current are ideal for high-frequency applications.

The compact, low-profile (φ6.3 mm, 4.2 mm height) RSL series features low ESR, high capacitance, and high ripple current capability.

Featuring high voltage options, the RSS series is SMDs designed for high-frequency applications, delivering low ESR, high capacitance, high ripple current, and a load life of 2,000 hours at 105°C.
