Large Can Aluminum Electrolytic Capacitors
Nichicon’s large-can aluminum electrolytic capacitors deliver high capacitance and handle high voltages, ideal for industrial and power applications. We offer options with extra-high capacitance or voltage, high ripple current, high-speed charge-discharge, long lifespans, and more. For your design ease, our large can aluminum electrolytic capacitors are available with robust screw terminals and easy-to-mount snap-in terminals.
Product Types

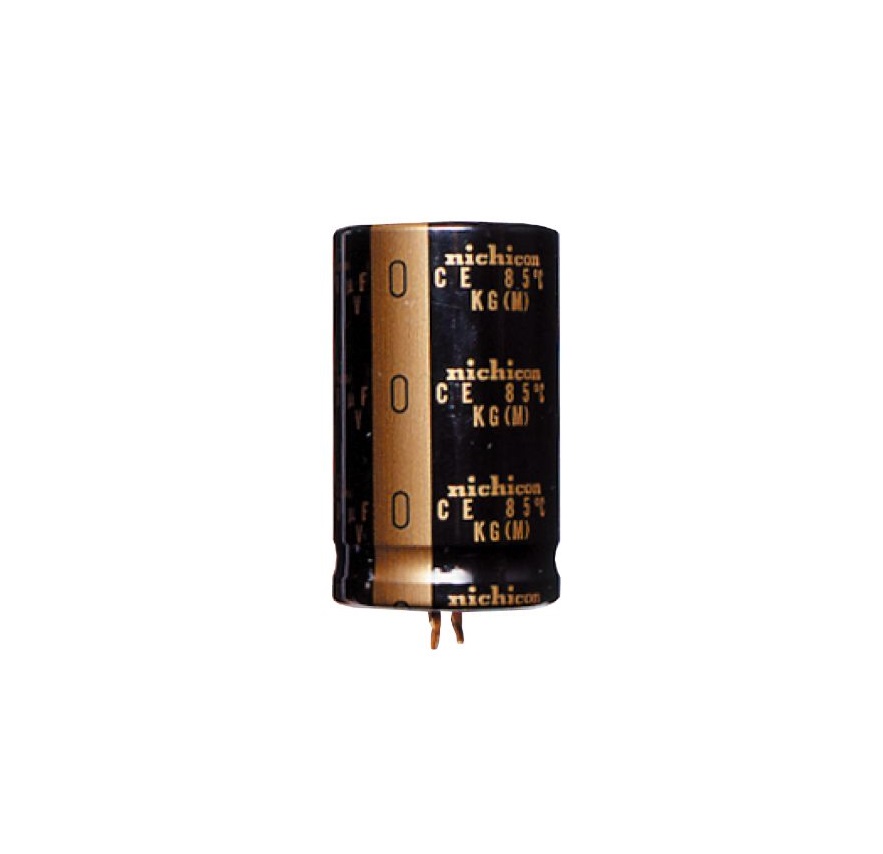

Designed for high-quality audio equipment, the LKG series delivers high-fidelity sound offered in three levels, the highest of which uses gold-plated terminals to enhance sound quality.
The LKS series offers higher tone quality and a smaller size than the LKX series, operating from -40°C to +85°C with a lifespan of 1,000 hours at 85°C.
The LKX series is the base offering of large-can aluminum electrolytic capacitors for audio equipment, designed for cost-effective high-quality sound.
The LNC series features a screw-terminal suited for power and industrial applications, with a smaller size and higher ripple current than the LNX and LNK series.
LNK series screw-terminal large-can capacitors are suitable for infrastructure applications like UPS and telecom base stations, as well as other power electronics.
The LNR series offers high capacitance and ripple current capacity, featuring a 5,000-hour load life with rated ripple currents at 85°C and comes in extended sizes up to φ100 mm × 250 mm L.
Ideal for power electronics applications, the LNT series offers a load life of 5,000 hours (or 2,000 hours for 10 V to 250 V and 500 V) with ripple current rating at 105°C.
The LNU series features higher voltage and smaller sizes than the LNT series, with rated voltages from 400 V to 525 V and a capacitance range of 680 µF to 18,000 µF.
Suitable for inverter circuitry of industrial power supplies, the LNX series offers high ripple current, extra-high voltage capabilities, and a long lifespan of 20,000 hours at 85°C.
The LNY series features higher voltage options compared to the LNR series, and is designed for power electronics applications that demand downsizing.
The LQR series offers a high-speed charge-discharge capability and high ripple current capacity, operating over -25°C to 85°C with rated voltages from 350 V to 450 V.
The LAK series is designed to permit abnormal high voltage, suitable for equipment in voltage-fluctuating areas.
The LAQ series offers smaller case sizes and higher ripple current than the LAK series, with the same enhanced safety features for abnormally excessive voltage.
The LAR series is designed to withstand overvoltage with lower chances of a short, recommended for primary power sources and lighting applications.
The LAS series features smaller case sizes and higher ripple current than the LAQ series with improved safety for abnormally excessive voltage.
The LGA series offers high capacitance and ripple current designed to meet the requirements of on-board EV and PHEV chargers.
The LGC series consists of capacitors with a 105°C long life assurance and an ultra-small size making them ideal for equipment downsizing.
LGG series capacitors are ultra-small, recommended for power supplies and lighting applications and suitable for downsizing equipment.
Recommended for primary power supplies and lighting applications, the LGJ series features low-profile components that can withstand 3,000 hours of ripple current at 105°C.
The LGL series offers case sizes a step smaller than the LGG series, making them suitable for equipment downsizing.
One step smaller than the LGL series, the LGM series are ultra-small capacitors suited for equipment downsizing in applications such as electric rail equipment, and power electronics applications.
The LGN series capacitors can withstand 3,000 hours of rated ripple current at 105°C, operating over a temperature range of -40°C to 105°C (160 V to 250 V) or -25°C to 105°C (350 V to 600 V).
The LGR series offers capacitors with a long life assurance of 10,000 hours withstanding ripple current at 105°C, designed for infrastructure applications like UPS and telecom base stations.
The LGU series features standard snap-in terminal aluminum electrolytic capacitors available in a wide range of rated voltages and capacitances.
LGW series is designed for high ripple current applications, including transformers, smart grids, servo systems, electric rail equipment, and lighting.
The LGX series offers capacitors with a long life assurance of 5,000 hours at 105°C, suitable for rectifier circuits in inverters and switching power supplies.
The LGY series is designed for long life assurance, withstanding 5,000 hours of ripple current at 105°C, designed for industrial power supplies requiring high reliability.
The LGZ series is an extension of the LGR series with enhancement in lifespan, withstanding 20,000 hours of ripple current at 105°C.
The LHT series offers a wide temperature range of -40°C to 125°C, contributing high-temperature support in equipment.
The LHX series is a long-lifespan extension of the LHT series, offering the same high-temperature support and greater reliability, featuring a lifespan of 5,000 hours at 125°C.
The LLG series is designed with a smaller case size than the LLS series, making its models suitable for equipment downsizing.
The LLS series offers high capacitance with snap-in terminals, rated for 3,000 hours of ripple current at 85 °C and operates from -40°C to 85°C (16 V to 250 V) or -25°C to 85°C (350 V to 450 V).
The LQS series features a high-speed charge-discharge capability and is suitable for power electronics applications such as AC servomotors and voltage doubler rectifier circuits.
